Configuring VMware Fusion on macOS

On macOS, running Windows as a virtual machine needs some special configuration, especially to integrate it seamlessly into the daily workflow. Once properly set up, accessibility testing on macOS will be as comfortable as it gets.

VMware Fusion logo

IMPORTANT NOTE regarding M1/M2 ARM processors

The options for Windows VMs on Apple M1 and M2 chips seem to be very limited at the time of writing. We have been successful with Parallels Desktop only.

Preparing the virtual machine

Before you proceed, be sure you have downloaded a pre-configured virtual machine (VM) as described here: Getting a free Windows virtual machine from Microsoft.

Then extract the VM (using The Unarchiver, as the built-in unzip version is not capable of zip64 files) to a proper location, for example ~/Virtual Machines.

Installing VMware Fusion

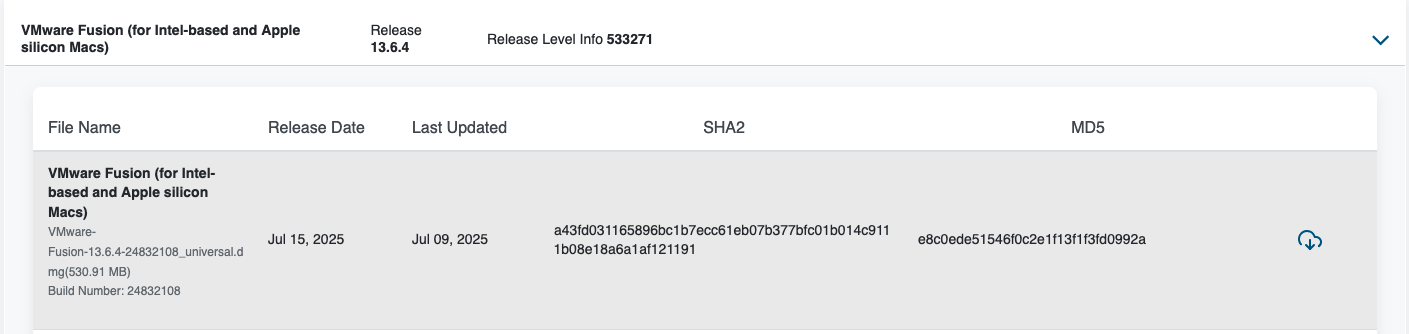

After downloading VMware Fusion, installing and launching it:

  • Choose FileImport, select the *.ovf file in the extracted folder and confirm.
  • Take a snapshot (Command + Shift + S).
    • This allows to easily go back to that state later, meaning you can re-activate the VM's Windows 90-day license again and again.
    • For more info, see Understanding snapshots (VMware).
  • Under Virtual MachineSettings:
    • If you have a retina display, go to Display and deselect Use full resolution for Retina display (otherwise your eyes will begin to hurt).
    • Go to Processors & Memory, then select at least 2000MB of memory.

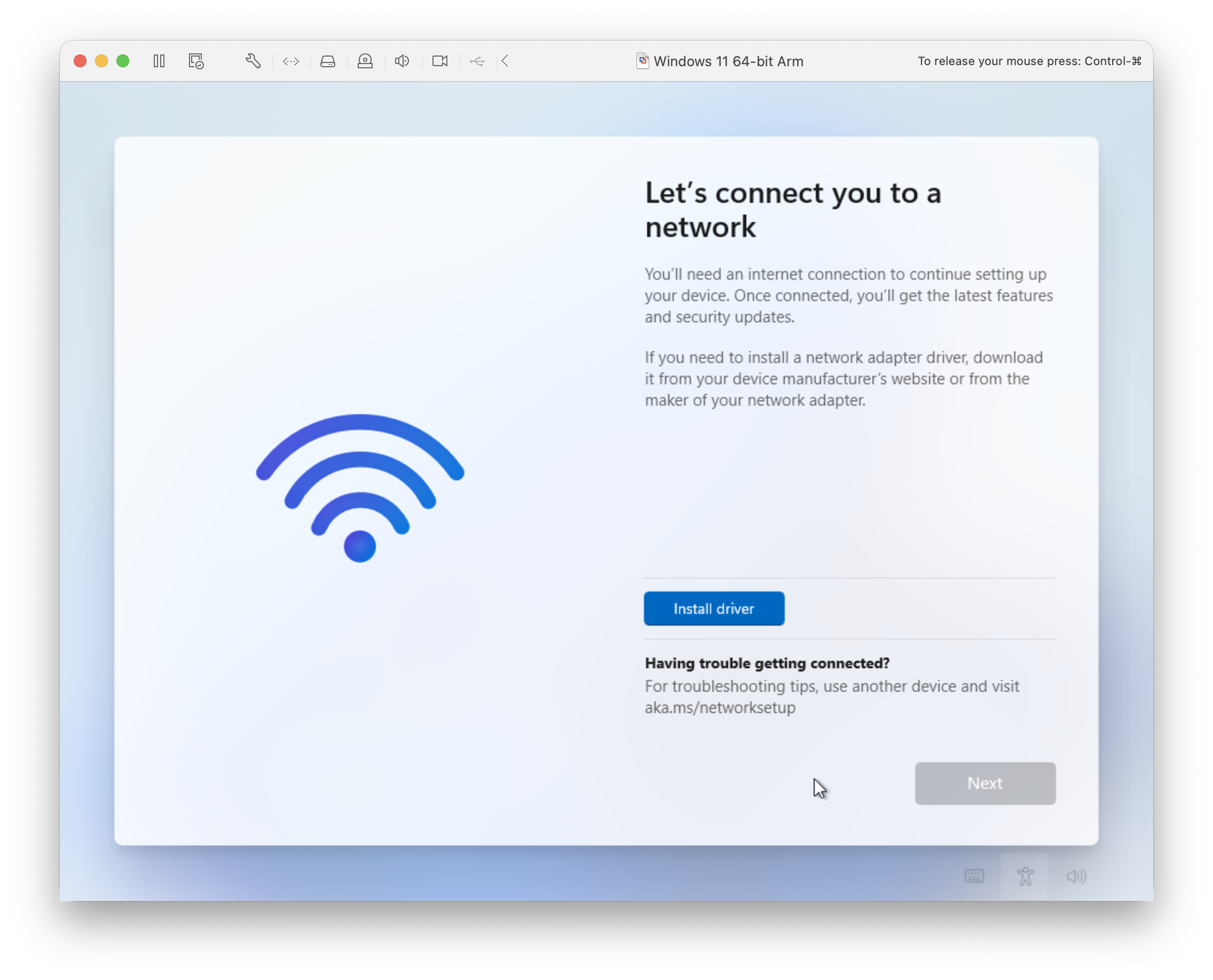

    • To be able to connect to the internet, click Add Device... and choose Network Adapter.
      • Use option Share with my Mac.

Booting up the VM for the first time

Start the VM. User and password can be found here: Getting a free Windows virtual machine from Microsoft.

Improving seamless integration

Simply having a Windows machine run on your beloved Mac may already feel creepy. To make you feel as comfortable as possible when working with it, we suggest the following additional configuration steps.

Disabling left Windows key

In VMware Fusion, the left Command key by default is assigned to the left Windows key. Pressing Command + Tab therefore often interferes with the left Windows key, opening and closing the "Start" menu of the VM seemingly randomly.

Opened Windows 7 start menu

If you want to prevent this:

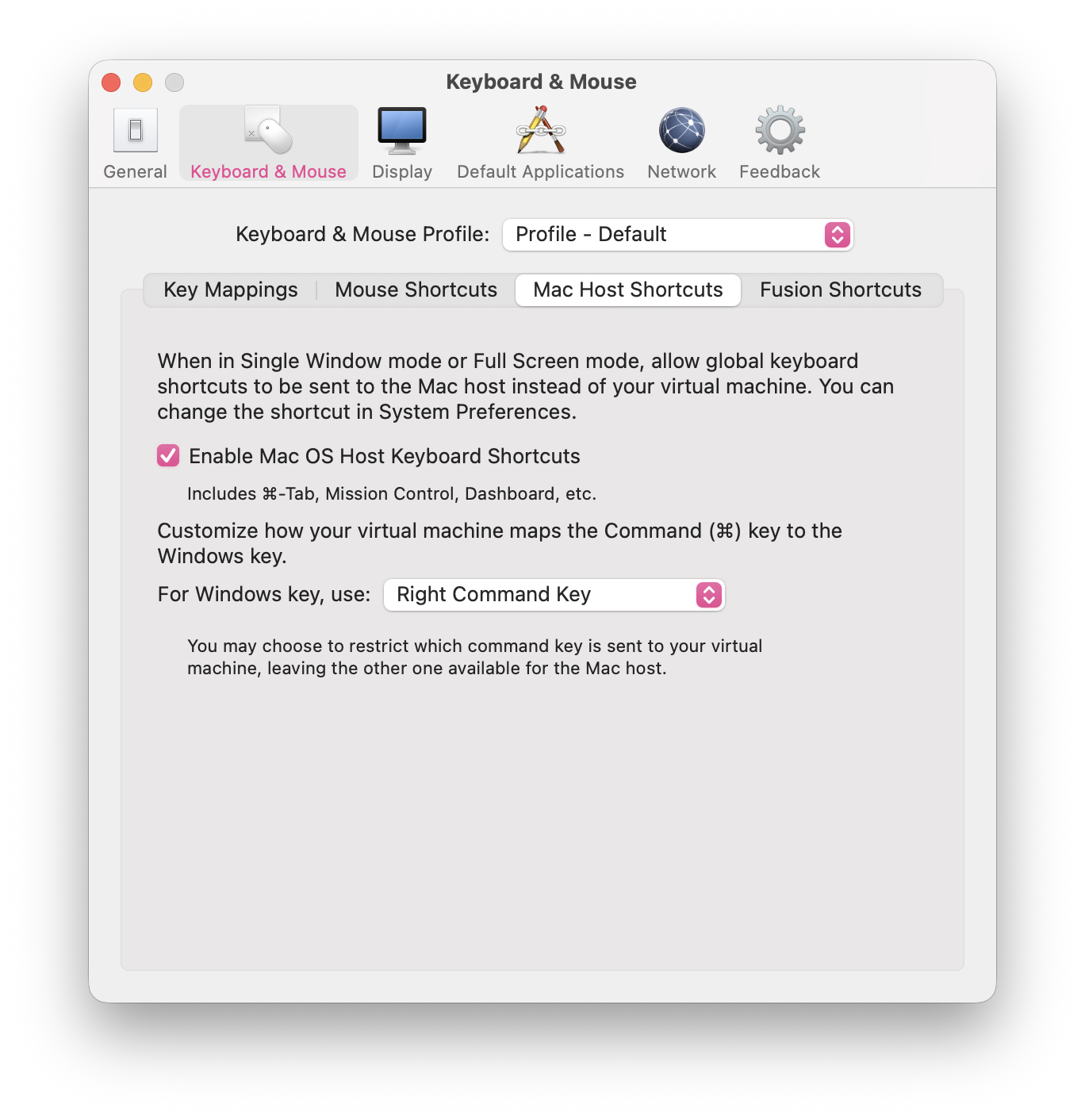

  • VMware FusionPreferencesKeyboard & MouseMac Host Shortcuts.
  • Then under For Windows key, use select Right Command key.

Remember that you can still use the right Command key to open and close the "Start" menu.

Changing behaviour of function keys

Windows desktop screen readers make use of the function keys (F1 to F12) a lot.

Function keys on a keyboard

By default, in macOS, you have to press the Fn key in addition to the specific function key to trigger it.

Keyboard shortcuts of desktop screen readers are quite tricky (if you are really curious and want to learn more about this, skip ahead and read The Insert Modifier Key and also Screen Reader Shortcuts). As the function keys are often part of them, we suggest that you change the behaviour of function keys (Apple Support) so you do not have to use the Fn key for them, too.

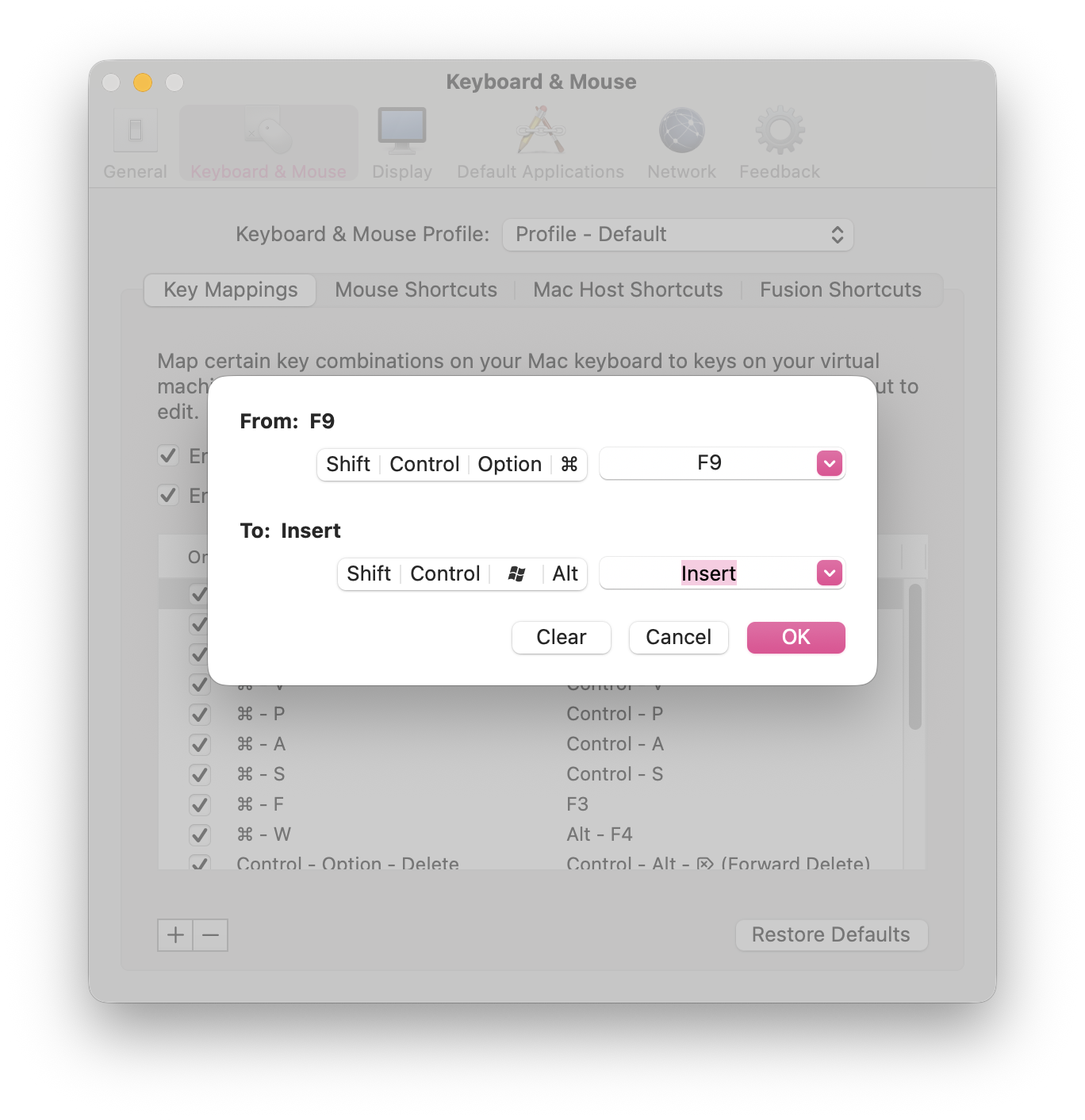

Emulating the Insert key

Windows desktop screen readers rely heavily on the Insert key.

Insert key on a keyboard

This key is not available on Macs (in earlier days of macOS, it was the "Help" key), so you will have to emulate it. The most robust way to do this is using the free software Karabiner-Elements which translates any given key to any other in macOS.

  • Download Karabiner-Elements and install it.
    • Be sure to allow its execution in the System Preferences' Security & Privacy section.
  • After launching it, add a Simple Modification:
    • From right_option to insert.
    • Instead of right_option, you can choose any key you like. Make sure it is one you do not really need in your daily workflow.

Alternatively, you can attach a physical USB num lock keyboard (or any other keyboard offering an Insert key) to your Mac.

Working seamlessly with the VM

We think it's easiest to have VMware running in Single Window mode (default):

  • Use Command + Tab to switch between Mac apps.
  • Use Option + Tab to switch between Windows apps (when VMware is active).

If you want all Windows apps to be accessible from the Dock (and thus also in the application switcher when pressing Command + Tab), the "Unity" mode is pretty cool, too. Even the Windows' task bar icons will appear in the Mac's menu bar.
